• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1988

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 239661

• • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 120 & back-up 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Space Saver FM/AM Electronic Digital Clock Radio 7-4612A - General Electric Co. GE;

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 7.875 x 2 x 4.875 inch / 200 x 51 x 124 mm

• Notes

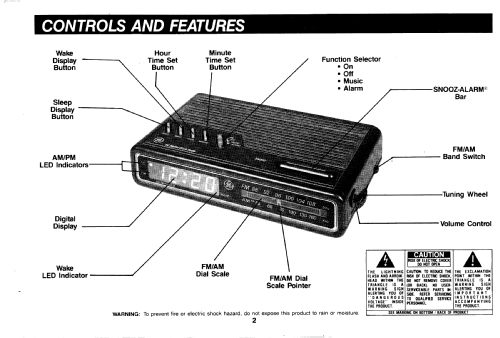

• General Electric Table Top AM/FM Digital clock radio Model 7-4612A  with SNOOZ-ALARM bar and 9v battery backup for clock and alarm.

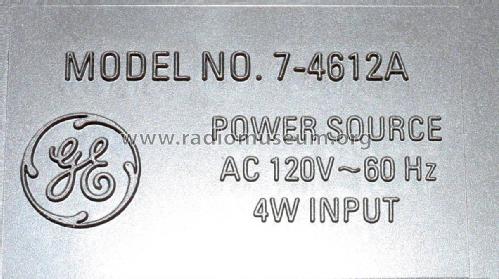

  Power consumption 4 Watts.

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
