Gecophone BC3250

GEC, General Electric Co Ltd., GENALEX; London

Data
Forum
Pictures
Collections

  • Year
  • 1924
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 76239
    • Brand: Gecophone

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • TRF with regeneration
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Gecophone BC3250 - GEC, General Electric Co Ltd.,
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 12.75 x 5.5 x 9.5 inch / 324 x 140 x 241 mm
  • Notes

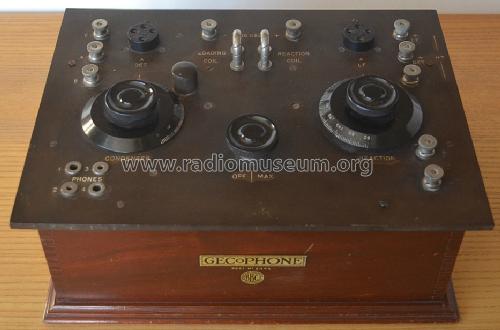

  • plug-in coils for wave change; BBC/PMG stamp, GPO No.5448; horizontal cabinet version of Smoker´s Cabinet BC 3200.

 Collections | Museums | Literature

Collections

The model Gecophone is part of the collections of the following members.

Literature

The model Gecophone is documented in the following literature.

 Forum

Forum contributions about this model: GEC, General: Gecophone BC3250

Threads: 1 | Posts: 2

Dear Radio friends,

I just uploaded the circuit diagram op a BC32510, property of the Olens Radiomuseum in Belgium.

I intend to write an article in our magazine, appearing trimestrially.

I would like to receive some explanation about the RF circuit.

Does this type of circuit have a paricular name?



Thank you.





Georges







Georges Van Campenhout † 28.4.22, 02.Dec.13
