• Country
• Estados Unidos

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1939

• Category
• Radio - o Sintonizador pasado WW2

• Radiomuseum.org ID
• 42165

• • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12A8GT 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superheterodino en general; ZF/IF 455 kHz

• Wave bands
• OM (onda media) solamente

• Power type and voltage
• Red: Aparato AC/DC. / 115 Volt

• Altavoz
• Altavoz dinámico (de imán permanente) / Ø 4 inch = 10.2 cm

• Potencia de salida
• 0.9 W (unknown quality)

• Material
• Plástico moderno (Nunca bakelita o catalina)

• from Radiomuseum.org

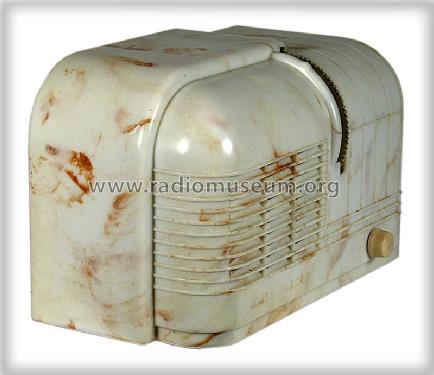

• Model: H-500X - General Electric Co. GE;

• Forma
• Sobremesa de cualquier forma, detalles no conocidos.

• Dimensions (WHD)
• 9.3 x 5.27 x 4.5 inch / 236 x 134 x 114 mm

• Notes
• BC Band: 540 - 1800 KHz. Color = Onyx plastic.
  Power Supply: 115VAC(25-60Hz) or DC. When operating from a DC source, power plug must be inserted with proper polarity. Uses dial lamp Qty (1) Mazda No 47.

• Net weight (2.2 lb = 1 kg)
• 3.1 kg / 6 lb 13.3 oz (6.828 lb)

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Documentación / Esquemas (1)
• General Electric Radio Service Notes 1939-1942
