H-508

General Electric Co. (GE); Bridgeport CT, Syracuse NY

Data
Forum
Pictures
Collections

  • Year
  • 1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 42176
    • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 1.2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: H-508 - General Electric Co. GE;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 15.2 x 10.2 x 13.5 inch / 386 x 259 x 343 mm
  • Notes
  • Radio Tuning Range: 540-1600 KHz
    This model had 3 power supply ratings:
    Rating A6 - 115V, 60Hz
    Rating A5 - 115V, 50Hz
    Rating C2 - 115V, 25Hz
    Dial Lamp: Qty (1) Mazda No 47.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 11 = ca. 1940 and before
  • Literature/Schematics (1)

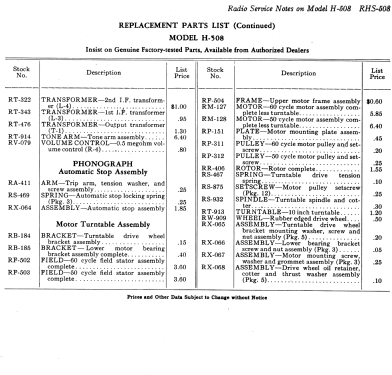

  • General Electric Radio Service Notes 1939-1942
