- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 42260
-
- Brand: Musaphonic

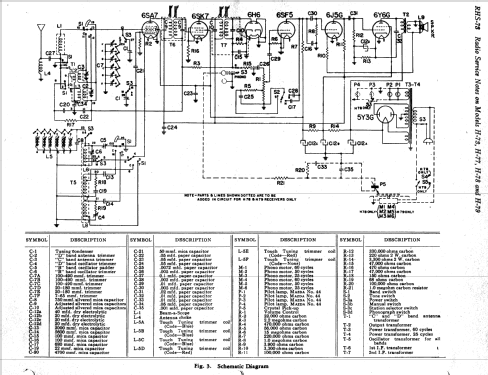

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 115-125; 103-262 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 3.7 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

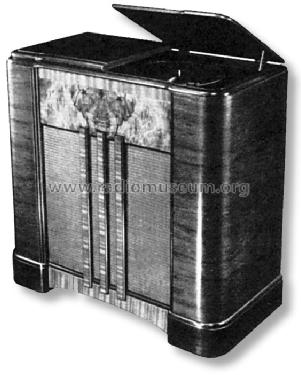

- Model: H-79 - General Electric Co. GE;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 35 x 35 x 17.5 inch / 889 x 889 x 445 mm
- Notes
- Band "B": 550-1600 KHz
Band "C": 2200-6500 KHz
Band "D": 6500-22000 KHz
This model had 3 power supply ratings:
Rating A - 115-125V, 50-60Hz
Rating B - 115-125V, 25-60Hz
Rating V - 103-262V, 50-60Hz
This model also contains an automatic 78 RPM record changer with a crystal pick-up capable of playing Twelve 10 inch or Ten 12 inch records. Dial Lamp: Qty (2) Mazda No. 44.
- Net weight (2.2 lb = 1 kg)
- 53.9 kg / 118 lb 11.6 oz (118.722 lb)
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Literature/Schematics (1)
- General Electric Radio Service Notes 1939-1942
