• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1939–1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 42304

• • Brand: Musaphonic

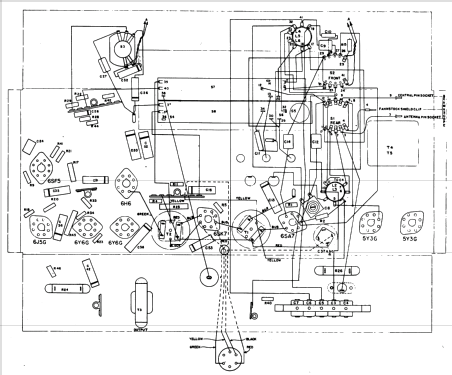

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6SA7 6SK7GT 6H6 6SF5GT 6U5 6J5GT 6Y6G 6Y6G 5Y3G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-125 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 12 inch = 30.5 cm

• Power out
• 8.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: HJ-1005 - General Electric Co. GE;

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 30 x 41 x 13.25 inch / 762 x 1041 x 337 mm

• Notes

• The General Electric model HJ-1005 was mentioned in the "General Electric Radio Service Notes 1939-1942". It therefore can not be later introduced in the market than in 1939. It has a Visualux dial.

• External source of data
• Ernst Erb

• Source of data
• Pre-War Consoles

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Literature/Schematics (3)
• General Electric Folder 13-497-W for 1941.
