HJ-619 AC

General Electric Co. (GE); Bridgeport CT, Syracuse NY

Data
Forum
Pictures
Collections

  • Year
  • 1940/1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 87875
    • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet. / Ø 6.5 inch = 16.5 cm
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

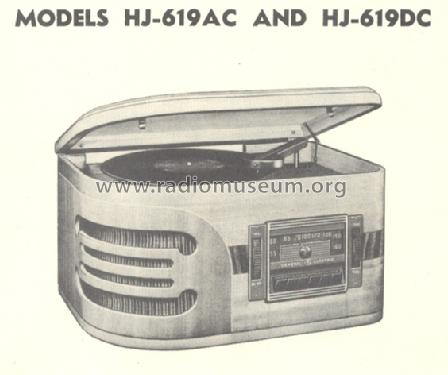

  • Model: HJ-619 AC - General Electric Co. GE;
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 16.2 x 9.5 x 11.2 inch / 411 x 241 x 284 mm
  • Notes

  • Phonograph, with Crystal type Pick-up. Available in Blond Sapeli and Blond Rosewood Veneers.

  • Source of data
  • -- Collector info (Sammler)
  • Literature/Schematics (1)
  • General Electric Radio Service Notes 1939-1942
  • Literature/Schematics (3)
  • General Electric Folder 13-497-W for 1941.
  • Author
  • Model page created by Vitor Oliveira. See "Data change" for further contributors.
