• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 42374

• • Brand: Musaphonic

• Number of Tubes
• 7

• Valves / Tubes

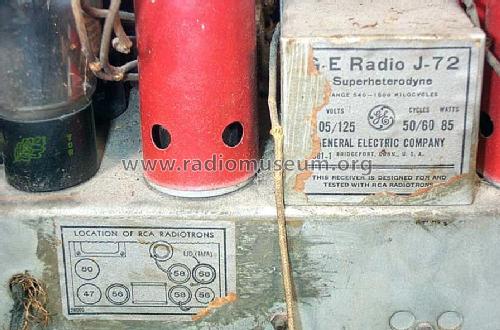

• 56 58 58 58 56 47 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 50-60 cycles, 105-125 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: J72 - General Electric Co. GE;

• Shape

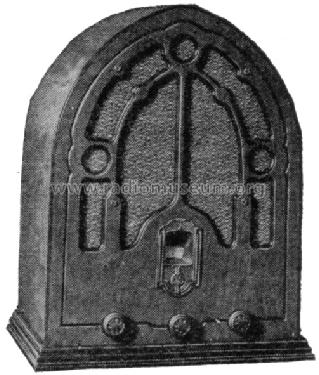

• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Price in first year of sale
• 47.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Machine Age to Jet Age II (page 142.)

• Other Models

• Here you find 2916 models, 2139 with images and 2042 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
