- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 42388
-
- Brand: Musaphonic

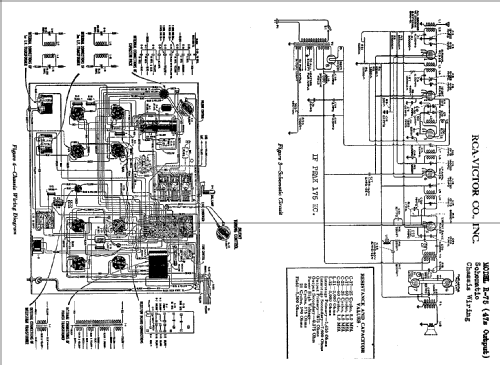

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: J87 - General Electric Co. GE;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- We assume that model GE J-87-A has the same tube line up as GE model J-87. The cabinet is nearly the same - also with 6 legs and stretcher - but a bit modernized. The J-87 was made by GE for themselves and also for RCA where it is model R75. Please be careful by placing pictures.

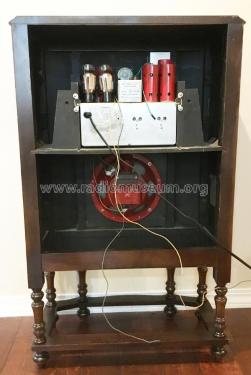

6 legged lowboy with stretcher base.
- Price in first year of sale
- 79.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Literature/Schematics (1)
- Pre-War Consoles
