• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 42400

• • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1A7GT 1N5GT 1N5GT 1H5GT 3Q5GT 35Z4GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 105-125, 9, 90 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 5 inch = 12.7 cm

• Power out
• 2 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

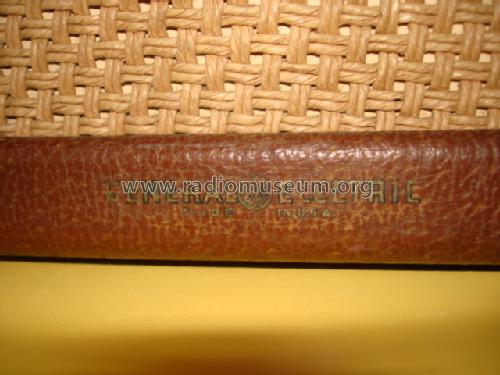

• Model: JB-630 - General Electric Co. GE;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 373 x 270 x 130 mm / 14.7 x 10.6 x 5.1 inch

• Notes

• Beam-a-Scope.

• Net weight (2.2 lb = 1 kg)
• 14.5 lb (14 lb 8 oz) / 6.583 kg

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Literature/Schematics (1)
• General Electric Radio Service Notes 1939-1942

• Literature/Schematics (3)
• General Electric Folder 13-497-W for 1941.
