• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 132846

• • Brand: Musaphonic

• Number of Tubes
• 6

• Valves / Tubes
• 58 2A7 58 2B7 2A5 80

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 100-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

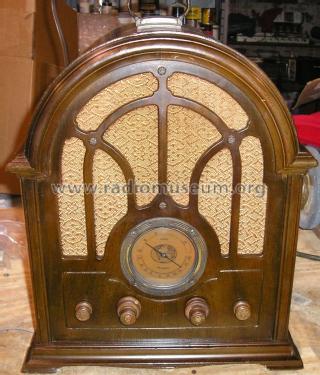

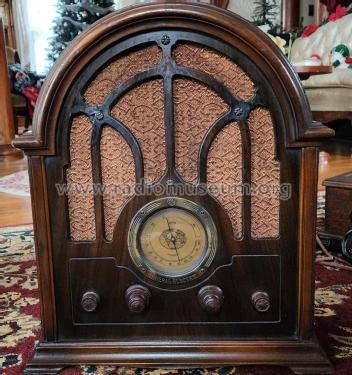

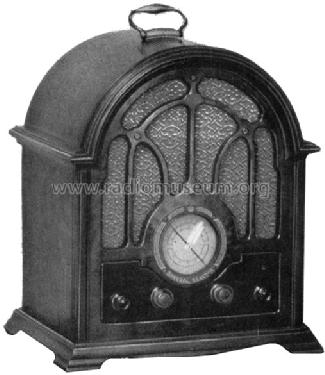

• Model: K64 - General Electric Co. GE;

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 370 x 420 x 260 mm / 14.6 x 16.5 x 10.2 inch

• Notes
• General Electric K64, a two band 6-tube radio, uses the same chassis as the RCA model 121, which GE manufactured for RCA.
  Power consumption 75W

• Net weight (2.2 lb = 1 kg)
• 11.4 kg / 25 lb 1.8 oz (25.11 lb)

• Price in first year of sale
• 54.50 $

• Mentioned in
• Machine Age to Jet Age II (page 144.)

• Literature/Schematics (1)
• Cathedral & Tombstone Radios (page 122.)
