• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 42487

• • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1N5GT 1A7GT 1N5GT 1H5GT 3Q5GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / AC/DC 105-125/ 90 & 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 2.4 W (unknown quality)

• from Radiomuseum.org

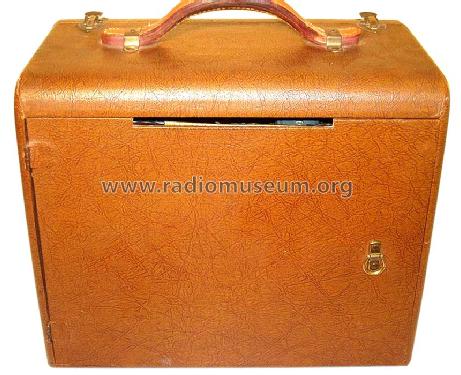

• Model: LB-673 - General Electric Co. GE;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 335 x 320 x 175 mm / 13.2 x 12.6 x 6.9 inch

• Notes
• F. range: 540-1700 KC.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 17 = 1948 and before

• Literature/Schematics (1)
• General Electric Radio Service Notes 1939-1942
