LC-628

General Electric Co. (GE); Bridgeport CT, Syracuse NY

Data
Forum
Pictures
Collections

  • Year
  • 1942
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 42496
    • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
  • Power out
  • 0.9 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

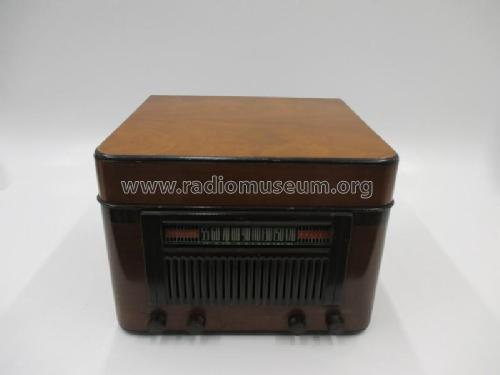

  • Model: LC-628 - General Electric Co. GE;
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Beam-a-Scope antenna.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 14 = 1944 = before 1943
  • Literature/Schematics (1)
  • General Electric Radio Service Notes 1939-1942
