- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 302373
-
- Brand: Musaphonic
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org

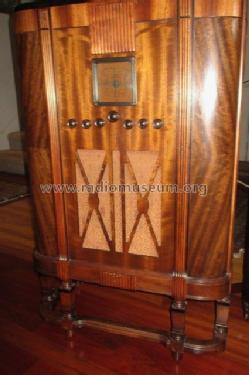

- Model: M-106 - General Electric Co. GE;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
The General Electric M-106 is a 5-band, 10-tube radio that receives long wave, broadcast and 3 shortwave bands. The function of the 7 controls on the front panel are, from left to right: Sensitivity, Bass, Power Off/On Switch, Tuning, Band Switch, Treble, and Volume.
Band Reception X 140 410 kHz Long Wave A 540 1720 kHz Broadcast B 1720 5400 kHz Shortwave 1 C 5.4 18 MHz Shortwave 2 D 18 36 MHz Shortwave 3 This model uses the same chassis as the RCA 262.
- Price in first year of sale
- 149.50 USD
- Literature/Schematics (1)
- -- Original prospect or advert (Dayton Herald (newspaper), 14 Dec, 1934)
- Author
- Model page created by Bill Lehr. See "Data change" for further contributors.
