Osram New Music Magnet Four (4)

• Country
• Great Britain (UK)

• Manufacturer / Brand
• GEC, General Electric Co Ltd., GENALEX; London

• Year
• 1930

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 77563

• • Brand: Gecophone

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

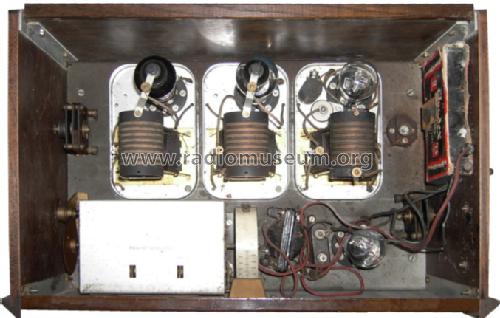

• Number of Tubes
• 4

• Valves / Tubes
• S215 S215 H210 LP2

• Main principle
• TRF with regeneration; Screengrid 1926-1935

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Osram New Music Magnet Four - GEC, General Electric Co Ltd.,

• Shape

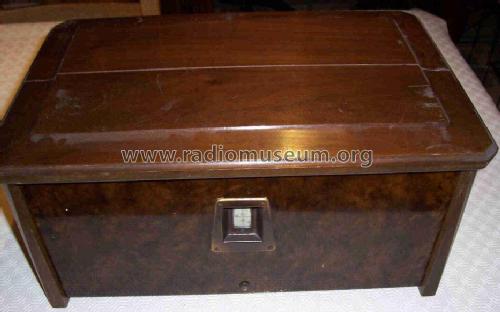

• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 17.5 x 8.5 x 11.5 inch / 445 x 216 x 292 mm

• Notes

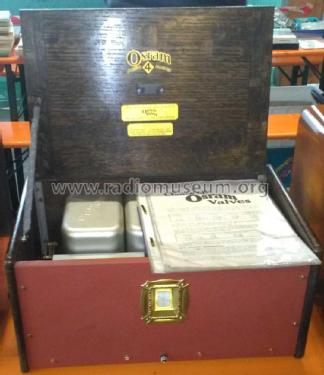

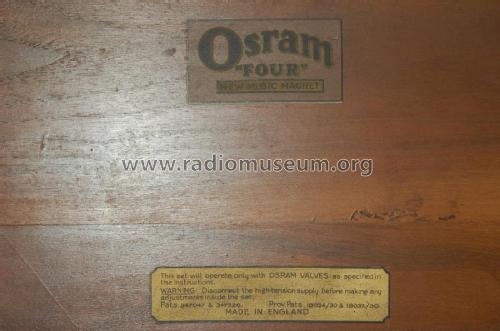

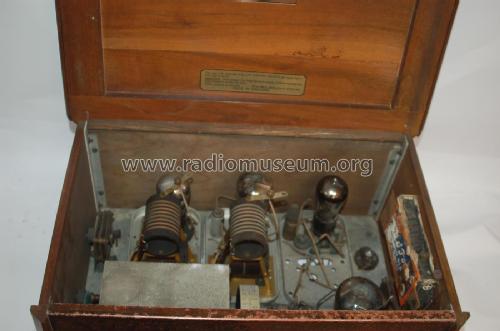

• Also available completely assembled (labelled at inside of lid).

• Source of data
• Radio! Radio!

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
