• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 93904

• • Brand: Musaphonic

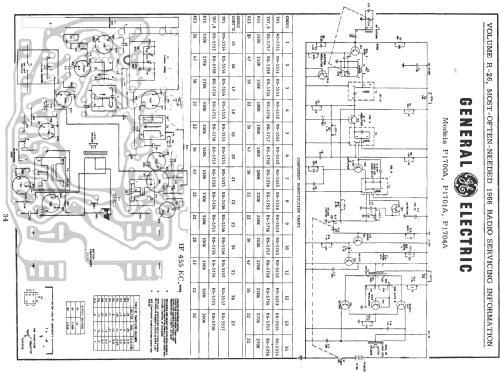

Click on the schematic thumbnail to request the schematic as a free document.

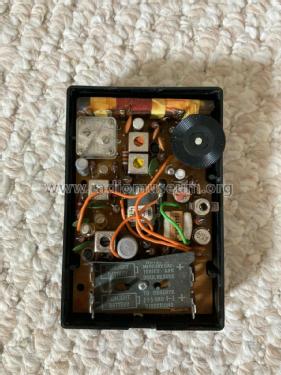

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 2 x 1.5 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

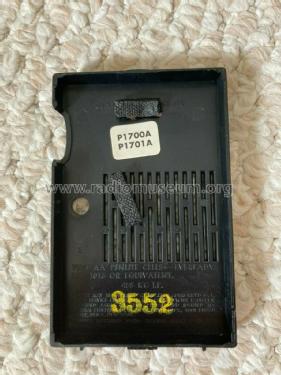

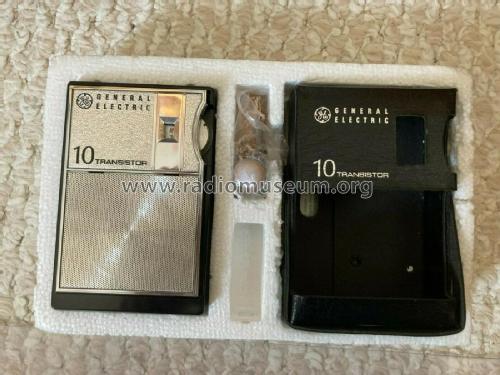

• Model: 10 Transistor P1700A - General Electric Co. GE;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• High impedance speaker with reed suspended between 2 pole pieces, drives paper cone with a stylus, and is directly driven in push-pull by a pair of collectors, without an audio output transformer. One of several contemporary GE transistor radio models to employ this kind of speaker which was originally used in the 1920's because of it's high efficiency and high impedance.

  This model is black.  See identical model P1701A in white.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 26, 1966

• Mentioned in
• Collector's Guide To TrR1 Bunis trans.94 (1996, page 105)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
