- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1972 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 299707
-
- Brand: Musaphonic
- Number of Transistors
- 16
- Semiconductors
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz; 3 AF stage(s)
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / Either AC: 60Hz, 115V or Batteries: "D" 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: P4980A - General Electric Co. GE;
- Shape
- Tablemodel, with any shape - general.
- Notes
-

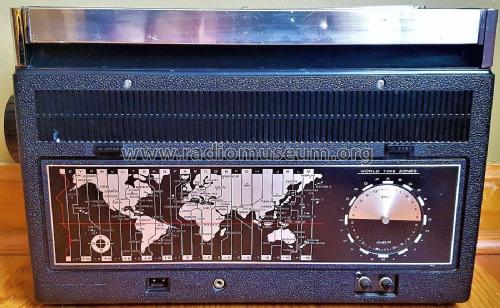

The General Electric P4980A is an AC/Battery operated 7 band portable receiver. The bands covered are AM, FM, SW, PSHI, PSLO, MB and AIR. Operates from either AC line or from Qty(6) "D" 1.5V batteries. Has push-pull audio output stage and earphone jack that disconnects the speaker for private listening.
Made in Japan
- Literature/Schematics (1)
- Photofact TSM Transistor Radio Series SAMS (TSM-135, June 1972 pages 23 to 48)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
