• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1957/1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70486

• • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N168A 2N293 2N293 2N191 2N241 2N241

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 3 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

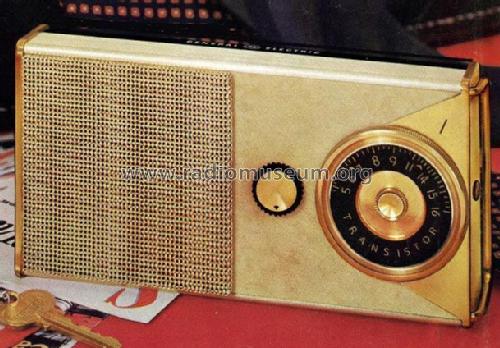

• Model: P715 - General Electric Co. GE;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 172 x 89 x 35 mm / 6.8 x 3.5 x 1.4 inch

• Notes
• Conelrad Markings (Civil Defense, CD) on the dial at 640 and 1240 kHz.

  The GE model P715 Transistor Pocket Radio can have an external plug-in charging unit in case rechargable AA cells were used. There was a color advertisement by GE in May 28, 1957 which stated "New General Electric All Transistor Pocket Radio plays up to 10,000 hours without changing batteries." Also for some of the transistors our first information is of April 1957.

  Schiffer: "The Portable Radio..." says year 1956 (at fig.13.4v) for the model. In p.191 is mentioned that in the mid fifties NiCd rechargeable cells became available for consumer products and the P715 was the first radio to use them. Consequently a charger was required, too, if the owner wanted to use such rechargeable batteries.

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Price in first year of sale
• 2,850.00 PTE

• Mentioned in
• The Portable Radio in American Life (pp.189, 191)

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 17, 1957 (R-17/37)

• Literature/Schematics (2)
• Billboard, August 25, 1956

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
