• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70488

• • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 3 Volt

• from Radiomuseum.org

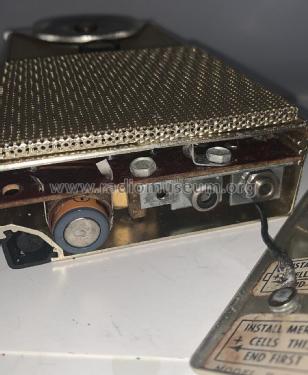

• Model: P715D - General Electric Co. GE;

• Notes
• 6Trans: 2N168A, 2N293, 2N293, 2N191, 2N241, 2N241

• Source of data
• Beitman Radio Diagrams, Vol. 19, 1959

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
