• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70400

• • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• 2N1058 2N410 2N293 T1583 2N408

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: P-800A - General Electric Co. GE;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

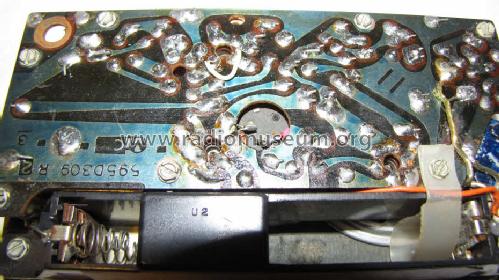

• Battery operated transistorized portable AM receiver. High impedance speaker with reed suspended between pole pieces, drives paper cone with a stylus, and is directly driven by a single ended transistor collector, without an audio output transformer. One of several contemporary GE transistor radio models to employ this kind of speaker which was originally used in the 1920's because of it's high efficiency and high impedance.

• Source of data
• Beitman Radio Diagrams, Vol. 20, 1960

• Literature/Schematics (1)

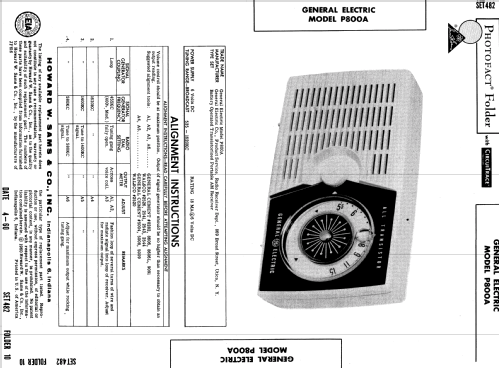

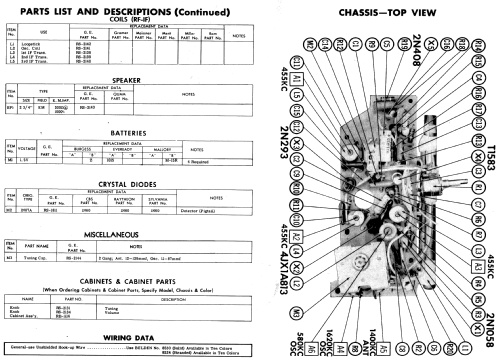

• Photofact Folder, Howard W. SAMS (Set 482 folder 10 date 4-60)

• Author
• Model page created by Trev Levick. See "Data change" for further contributors.
