All Transistor P1756D
General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1968
![perfect model](/img/sternRot.gif)
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 107500
-
- Brand: Musaphonic
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: All Transistor P1756D - General Electric Co. GE;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 62 x 104 x 34 mm / 2.4 x 4.1 x 1.3 inch
- Notes
-

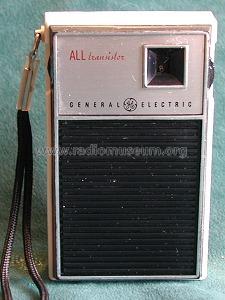

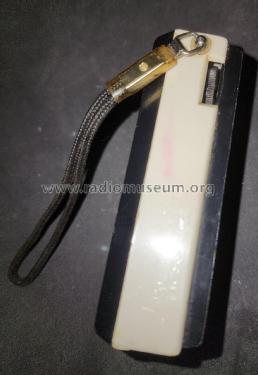

The General Electric P1756D ia a battery operated portable AM band transistor radio. Has push-pull audio output stage and earphone jack that disconnects the speaker for private listening. Uses standard 9V battery. Has carrying strap, square dial window.
The following models use the same schematic:
Model Year P1756D 1968 P1757A 1968 P1758A 1968
- Net weight (2.2 lb = 1 kg)
- 0.160 kg / 0 lb 5.6 oz (0.352 lb)
- Mentioned in
- -- Collector info (Sammler)
- Literature/Schematics (1)
- General Electric Service Notes (General Electric Radio Service Guide Volume VII 1967 to 1969 pages 170, 171)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
