- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 200092
-
- Brand: Musaphonic
Frontseite
Frontseite
Linke Seite
Firmenschild auf der Gerätefrontseite.

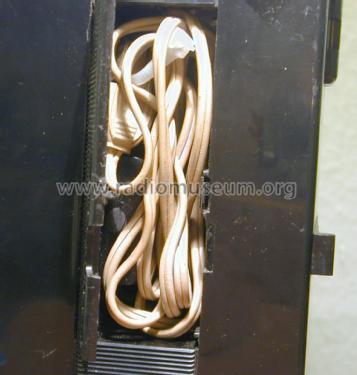

Fach für Netzkabel in der Geräteunterseite
- Number of Transistors
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 60 Hz; 105 - 120 / 4 x D 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: P-881A - General Electric Co. GE;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 275 x 172 x 80 mm / 10.8 x 6.8 x 3.1 inch
- Notes
-
General Electric 5 transistor model P-881A, black/white cabinet, slide-in handle. Same model in Honey Beige / White color see model no: P-880A.
- Net weight (2.2 lb = 1 kg)
- 1.650 kg / 3 lb 10.1 oz (3.634 lb)
- Mentioned in
- Collector's Guide To TrR1 Bunis trans.94 (1996, page 102)
- Literature/Schematics (1)
- Photofact TSM Transistor Radio Series SAMS (TSM-29, Oct. 1963)
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
