• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1941–1945 ?

• Category
• Military Receiver

• Radiomuseum.org ID
• 108157

• • Brand: Musaphonic

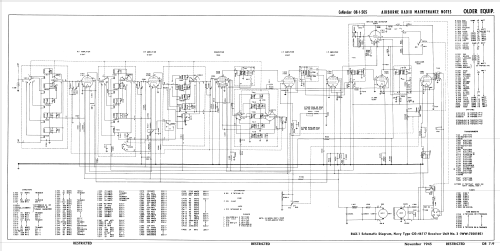

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 12SK7 12SK7 12K8 12SK7 12SK7 12SK7 12A6 12SR7

• Main principle
• Superhet with RF-stage; ZF/IF 2275 kHz

• Tuned circuits
• 12 AM circuit(s)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Powered by external power supply or a main unit. / 28 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: RAX-1 CG-46117 - General Electric Co. GE;

• Shape
• Rack

• Dimensions (WHD)
• 186 x 190 x 400 mm / 7.3 x 7.5 x 15.7 inch

• Notes

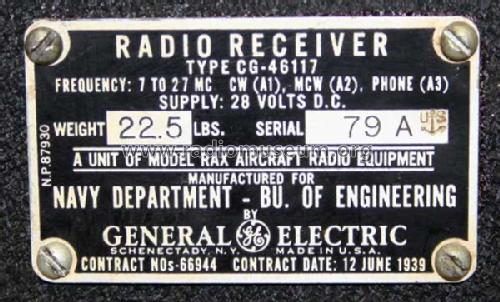

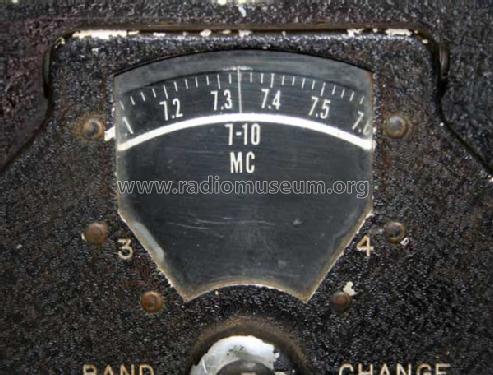

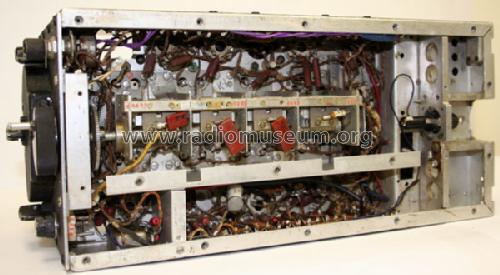

• Receiver, aircraft, part of Navy Model RAX-1. 7-27 MHz in 5 bands. CW (A1), MCW (A2), AM (A3). Design similar to SCR-274N with bandswitching. For local control only. Other Model RAX-1 receivers: CG-46116 (1.5-9 MHz in 4 bands, IF 915 kHz) and CG-46115 (200-1500 kHz in 4 bands, IF 160 kHz).

• Net weight (2.2 lb = 1 kg)
• 10.2 kg / 22 lb 7.5 oz (22.467 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Valery Gromov. See "Data change" for further contributors.

• Other Models

• Here you find 2916 models, 2139 with images and 2042 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from General Electric Co. (GE); Bridgeport CT, Syracuse NY
