RC1616B TU20C
General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 89819
-
- Brand: Musaphonic

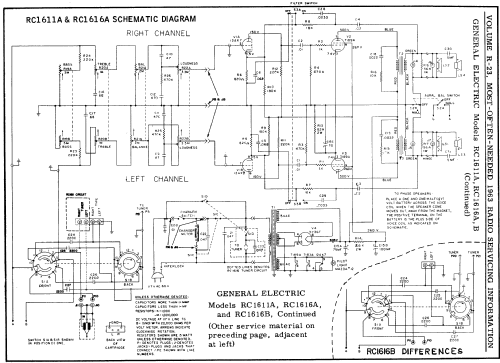

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: RC1616B TU20C - General Electric Co. GE;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
The GE manual states that the RC1616B uses the TU20C AM/FM tuner, other RC1616x models may use other tuners.
The tube listing may only be the Record Player amp & PSU unless updated.
The VHF-FM part is Stereo and has AFC.
- Circuit diagram reference

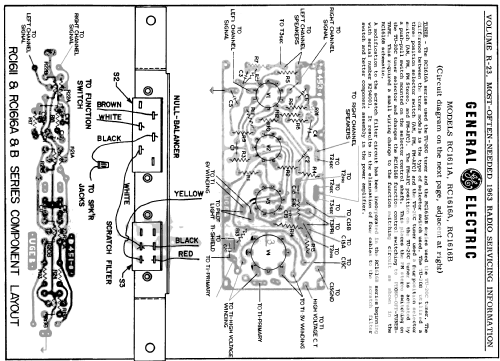

- Beitman Radio Diagrams Vol. 23, 1963
