RC6731A Ch= TU376-3 + T15
General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 139534
-
- Brand: Musaphonic
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 26
- Semiconductors
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: RC6731A Ch= TU376-3 + T15 - General Electric Co. GE;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- Chassis T15 is a Power Amplifier, Chassis TU376-3 is an AM/FM Stereo Receiver used in General Electric Model RC6731A with a 4 Speed Automatic Record Changer.
- Literature/Schematics (1)

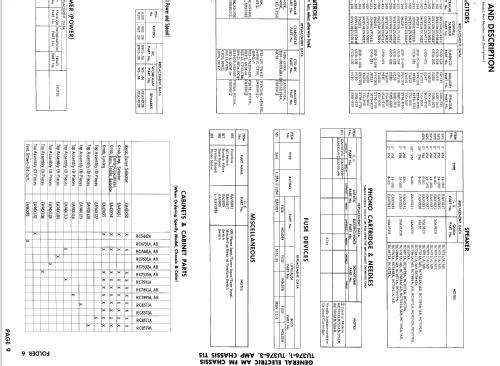

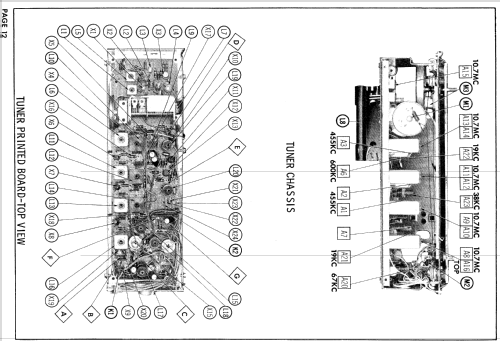

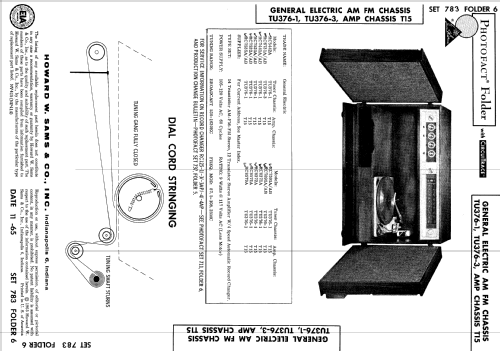

- Photofact Folder, Howard W. SAMS (Date 11-65, Set 783, Folder 6)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
