- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1959 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 70403
-
- Brand: Musaphonic
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 5.25 inch = 13.3 cm
- from Radiomuseum.org
- Model: RP1115A - General Electric Co. GE;
- Notes
- AC operated stereo phono amplifier with 4 speed automatic record changer. Sams photofact set 494 folder 8 date 8-60 features the General electric models RP1115A, RP1116A, RP1130A and RP1130B as the same schematic.
- Source of data
- Beitman Radio Diagrams, Vol. 20, 1960
- Literature/Schematics (1)

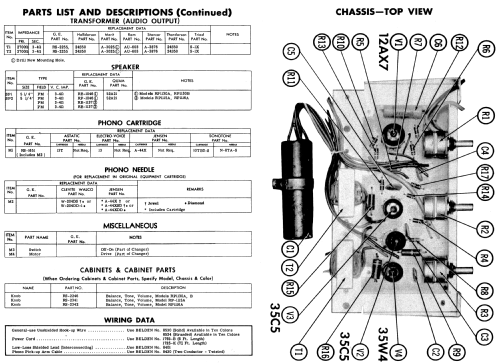

- Photofact Folder, Howard W. SAMS (Set 494 folder 8 date 8-60)
- Author
- Model page created by Trev Levick. See "Data change" for further contributors.
