- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1932 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 300458
-
- Brand: Musaphonic
From a Canadian Kijiji advertisement.
From a Canadian Kijiji advertisement.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 105 to 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: S-22A - General Electric Co. GE;
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Notes
-

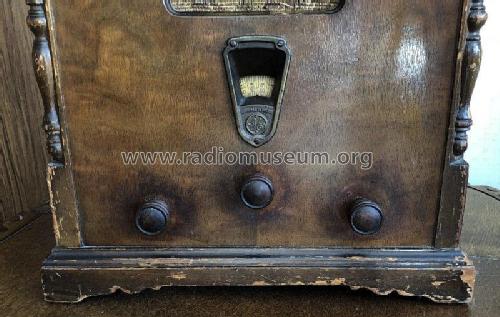

The General Electric model S-22A is an 8-tube radio for broadcast reception. Same schematic as the RCA model R-7A.
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 01, 1926-1938 (Sheet 160)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
