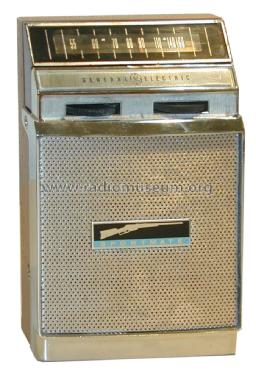

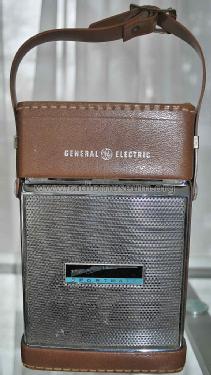

Sportmate P-860A
General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1960 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 133977
-
- Brand: Musaphonic
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage

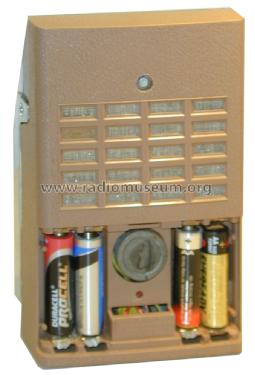

- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Material
- Various materials
- from Radiomuseum.org
- Model: Sportmate P-860A - General Electric Co. GE;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 116 x 169 x 47 mm / 4.6 x 6.7 x 1.9 inch
- Notes

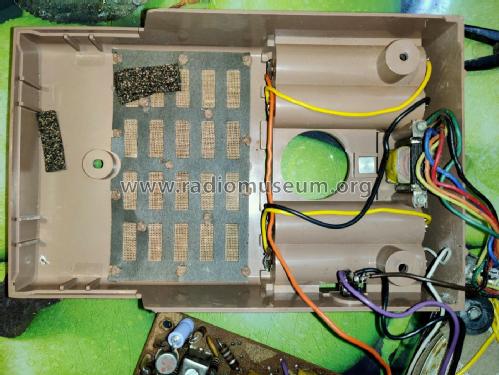

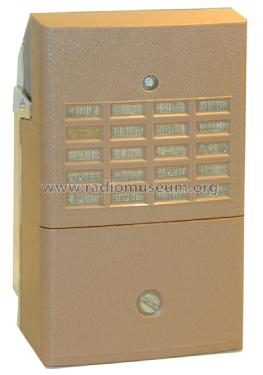

- "coat pocket radio". Front made from heavy compact metal, 2 mm thick. Plastic back 2.6 mm thick.
- Net weight (2.2 lb = 1 kg)
- 0.7 kg / 1 lb 8.7 oz (1.542 lb)
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Wolfgang Möller. See "Data change" for further contributors.
