Sportsmate P-860E
General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1963/1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 199864
-
- Brand: Musaphonic
Picture from GE Service Manual
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage

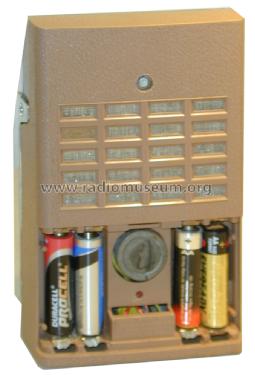

- Dry Batteries / 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Sportsmate P-860E - General Electric Co. GE;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 106 x 168 x 48 mm / 4.2 x 6.6 x 1.9 inch
- Notes
-
GE General Electric Sportsmate P-860F showing a rifle in front with leather case
- Mentioned in
- Bunis, Transistor Radios, 2nd ed., p. 101, 1996
- Literature/Schematics (1)
- General Electric Service Notes (General Electric Radio Service Guide Volume V page 62)
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
