• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1980 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139947

• • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 120 / D: 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

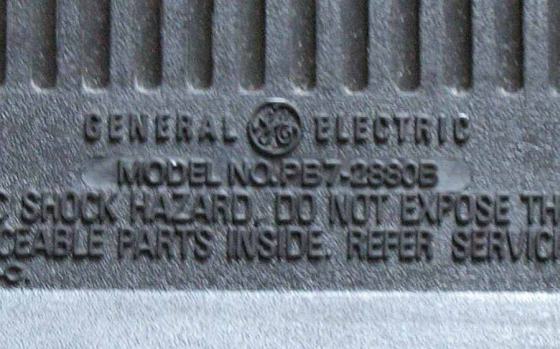

• Model: Superadio 7-2880B - General Electric Co. GE;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 12 x 8.75 x 3.75 inch / 305 x 222 x 95 mm

• Notes

• General Electric GE Superadio 7-2880B Long Range, High Selectivity;
  AFC, bass & treble control, ext. antenna screw terminals in, 38" swivel whip FM antenna, 7 7/8" long ferrite rod AM antenna.

  Made in Hong Kong

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
