- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 188487
-
- Brand: Musaphonic
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org

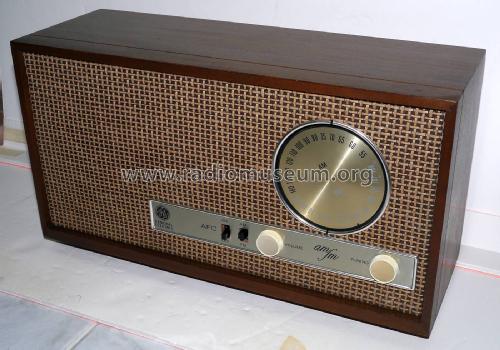

- Model: T290A - General Electric Co. GE;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 20 x 9 x 6 inch / 508 x 229 x 152 mm
- Net weight (2.2 lb = 1 kg)
- 6 lb 5 oz (6.313 lb) / 2.866 kg
- Author
- Model page created by John Backscheider. See "Data change" for further contributors.
