- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 139792
-
- Brand: Musaphonic
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 105 - 120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 6 inch = 15.2 cm
- from Radiomuseum.org
- Model: T-1007A - General Electric Co. GE;
- Shape
- Tablemodel, with any shape - general.
- Notes
- The General Electric Model T-1007A is an AC/DC Operated 10 Tube AM-FM Receiver with Stereo Amplifier.
- Literature/Schematics (1)

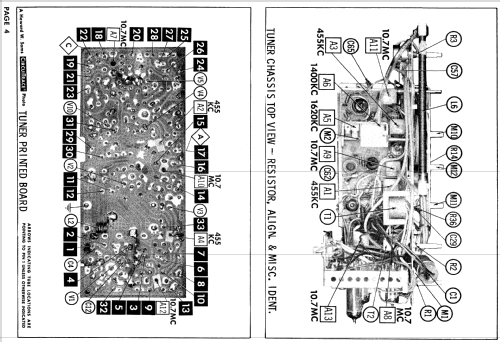

- Photofact Folder, Howard W. SAMS (Date 8-63, Set 651, Folder 8)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
