• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 223049

• • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / Either AC 50 to 60 cycles 105 to 120 Volts or DC 105 to 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: T-102A - General Electric Co. GE;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 10.5 x 6.625 x 5 inch / 267 x 168 x 127 mm

• Notes

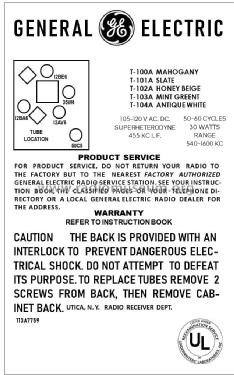

• The General Electric T-102A is an AC/DC operated 5 tube BC band receiver.  The BC band range is 540 to 1600 kHz.  Has built-in loop antenna. Cabinet color is Honey Beige.

  The following models use the same schematic and cabinet but have different cabinet colors:

  Model Number	Cabinet Color
  T-100A	Mahogany
  T-101A	Slate
  T-102A	Honey Beige
  T-103A	Mint Green
  T-104A	Antique White



• Net weight (2.2 lb = 1 kg)
• 2 lb 12 oz (2.75 lb) / 1.249 kg

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 21, 1961 (Page 48)

• Literature/Schematics (2)
• General Electric Service Notes (General Electric Service Guide Volume III 1946 to 1961 Page 147)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
