- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 240394
-
- Brand: Musaphonic
eBay seller baue_875, item 265494299516
eBay seller baue_875, item 265494299516
eBay seller baue_875, item 265494299516
eBay seller baue_875, item 265494299516
eBay seller baue_875, item 265494299516
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 50 - 60 Hz,105 - 120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: T-271A - General Electric Co. GE;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 430 x 250 x 190 mm / 16.9 x 9.8 x 7.5 inch
- Notes
-

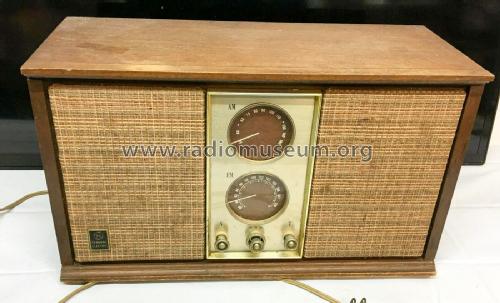

The General Electric T-271A is an AC operated BC and FM band receiver. Cabinet color is Mahogany.
The following models use the same schematic and cabinet but have different cabinet colors:
Model Number Cabinet Color T-270A Walnut T-271A Mahogany
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 643, Folder 8, August 1963)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
