- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 139791
-
- Brand: Musaphonic
Sams Photofact Folders

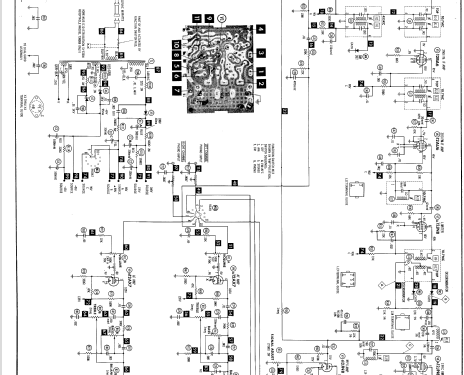

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Number of Transistors
- 4
- Semiconductors
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 4 Loudspeakers
- from Radiomuseum.org
- Model: T-3000B - General Electric Co. GE;
- Shape
- Tablemodel, with any shape - general.
- Notes
- The General Electric Model T-3000B is an AC Operated 11 Tube 4 Transistor AM-FM Stereo Receiver.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 1-65, Set 734, Folder 6)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
