Two Battery Rectifier 206797

General Electric Co. (GE); Bridgeport CT, Syracuse NY

Data
Forum
Pictures
Collections

  • Year
  • 1930 ??
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 133257
    • Brand: Musaphonic

 Technical Specifications

  • Number of Tubes
  • 1
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Two Battery Rectifier 206797 - General Electric Co. GE;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 10 x 8 x 6.3 inch / 254 x 203 x 160 mm
  • Notes

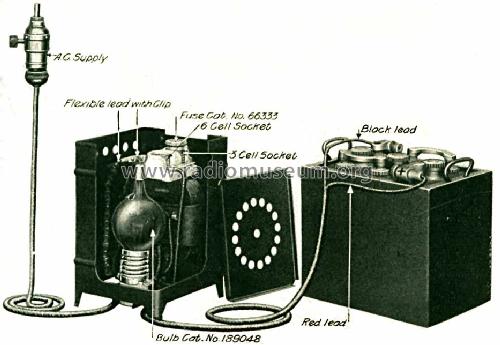

  • This Rectifier with Tungar-tube will charge two 6 V batteries or one 12 V battery at 6 A, or one 18 V battery at 3 A. It has a double-pole fuse block mounted on the auto-transformer core, which has one fuse plug only. The foto shows the fuse plug in the position for charging a 6 V battery. When it is desired to charge a 12 V battery or an 18 V battery, the fuse is removed from the first receptacle and is screwed into the second receptacle.
    DC: 1–6 A, 7.5–15 V;
    AC: 115 V/125–133 Hz.
  • Net weight (2.2 lb = 1 kg)
  • 8.2 kg / 18 lb 1 oz (18.062 lb)
  • Mentioned in
  • The Automobile Storage Battery, 1930
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
