• Country
• United States of America (USA)

• Manufacturer / Brand
• General Electric Co. (GE); Bridgeport CT, Syracuse NY

• Year
• 1917 ?

• Category
• Commercial Transmitter (TX not Transceiver)

• Radiomuseum.org ID
• 131292

• • Brand: Musaphonic

• Number of Tubes
• 2

• Valves / Tubes
• B_Western B_Western

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Other, details in remarks or not known. / 6 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Wooden case

• from Radiomuseum.org

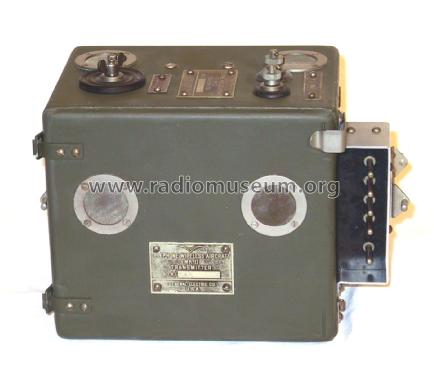

• Model: Wireless Aircraft Transmitter Mk II - General Electric Co. GE;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 470 x 200 x 150 mm / 18.5 x 7.9 x 5.9 inch

• Notes
• General Electric Telephone Wireless Aircraft MK II Transmitter, for use in WW1 aeroplanes with an external switch/control board witch contains the mains switch as well as an ampere meter, terminals for microphone and telephone, and an external receiver, two triodes, spring damped chassis. Operating frequency fix adjusted, screw clamps for antenna and power in, five pole plug to connect the control board.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
