Grunow 1541 Teledial Ch= 15-W

General Household Utilities Co. (Grunow); Chicago Ill.

Data
Forum
Pictures
Collections

  • Year
  • 1936/1937
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 42665
    • Brand: Grunow (trade name)

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 15
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker

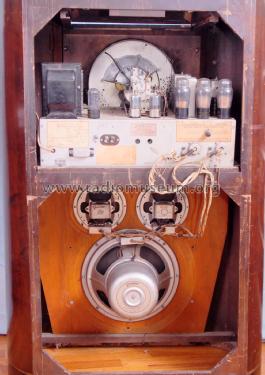

  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Grunow 1541 Teledial Ch= 15-W - General Household Utilities Co
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 29.5 x 42 x 16.75 inch / 749 x 1067 x 425 mm
  • Notes

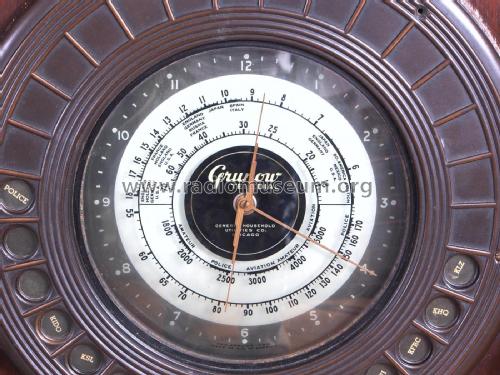

  • The Grunow model 1541 Teledial is a High Fidelity Receiver with 15 metal tubes, 15 watt output, 3 speaker; high and low frequency channels (separate power stage and speaker). AFC. Receives 540 all the way up to 70,000 kc., high fidelity, Teledial. The model 1541 incorporates a selectable IF "fidelity" control for increased station selectivity and tone, as well as STANDARD or DIAL tuning with AFC (automatic frequency control). In addition, the cabinet is beautiful, featuring a closable cover over the dial and controls. The cabinet is of full figured butt walnut panels of stiped California walnut, with an Oriental Walnut border and an antique gold stripe around base. The cabinet is nearly equal to model 1297 but has more vertical bars! The chassis has a great, fully illuminated dial with a floating 3D effect and different colored band indicators that light up near each band’s area of the dial.

  • Price in first year of sale
  • 200.00 $
  • External source of data
  • Ernst Erb

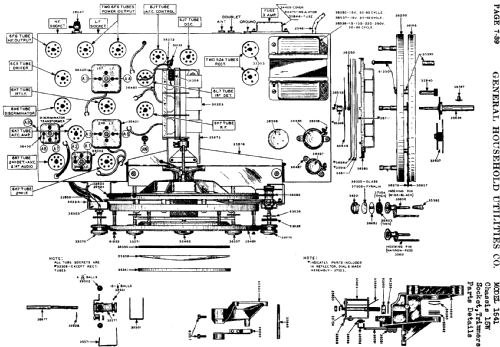

  • Circuit diagram reference
  • Rider's Perpetual, Volume 7 = 1936 and before
  • Literature/Schematics (3)
  • The Grunow Folder for 1937.

 Collections | Museums | Literature

Collections

The model Grunow 1541 Teledial is part of the collections of the following members.

 Forum

Forum contributions about this model: General Household: Grunow 1541 Teledial Ch= 15-W

Threads: 1 | Posts: 3

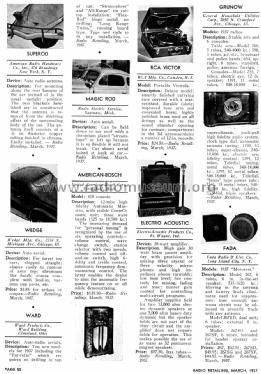

The model Grunow 1541 Teledial with chassis 15-W is the top of the line model of "General Household Utilites Co." As we can read on top right of "Radio Retailing, March, 1937 on page 50, there was anounced 9 models for 1937, which we call 1936/37. On each of those models you can see the scan with the following information for "General Household":

3 table sets:
Model 566, 5 tubes, 540-4000 kc.;
Model 590, 5 tubes, ac-dc, broadcast and police bands (see the picture in the scan);
Model 654, upright, 6 tubes, standard, police, amateur, foreign.

6 consoles:
Model 755, 7 tubes, incl. electric eye, 12 inch speaker;
Model 1191, 11 metal tubes, 540-18'000 kc., super-chassis, push-pull high fidelity autio system, clock type dial, automatic antenna tuning;
Model 1193, 11 tubes, super-chassis, 540-18'000 kc., electric eye, fidelity control:
Model 1291, 12 tubes, Teledial tuning, metal tubes, 540-18'000 kc.;
Model 1297, 12 metal tubes, 540-18'000 kc., Teledial, "beam" type power tube;
Model 1541, 15 metal tubes, 540-70'000 kc, high fidelity, Teledial, triple speakers.

Konrad Birkner has written a good comment for model 1291:
"This 1937 model must have been released in (late) 1936 to get the X-mas sales. It was advertised with Shirley Temple promoting the Radio with reference to her motion picture "The Bowery Princess" of 1936. Further: the schematic is found in Rider's Perpetual, vol.7, which covers End 1935 to End 1936, not later. All that justifies the dating 1936/37
Beitman shows Grunow chassis: 12B, 12W for models: 1291, 1297 for the same schematic. The same is for Rider's page 7-35 for General Household. One might think both chassis are used for both models but we believe it is meant only that the Grunow chassis 12B is used for model 1291 and the 12W chassis for model 1297. Therefore we show two models, not 4 as other sources."

We will have to clear which variants were possible, for instance like the
Model 1191B with chassis 11-G with speaker 12G3-1 and the same tubes.

See also other Grunow models with Teledial:
Model 1081, chassis 10-G; Model 663, chassis 6-E: Model 585 and Model 588 with chassis 5-W, a chair side model; Model 1185, chassis 11-H as also Model 1181 and Model 1183 with it; Model 1091 with chassis 10-G; Model 1067 with chassis 10-D.
The scan of "Radio Retailing" June 1937 shows the consoles 663, 1067, 1081, 1091, 1181 and 1183 for the Grunow 1938 line", which we present for 1937/38.

In June 1937 also table models were offered by Grunow for 1938: The console 589 with Teledial plus first table models with this feature. models 622, 624 and 632,

Grunow model 586, 1293 and 588 are also a Teledial model - as is model 653. We also show a console Grunow 623 with Teledial, but I doubt a bit if this is correct (Stein).

The Teledial
Konrad has also given a short notice of what we beleive the Teledial functions. This because we found pictures where the device was not fitted the right way: "Hypothesis: By "dialling" like an old telephone you put the finger in the hole showing the desired (and programmed) station, rotate down to center (to illuminated scale pointer) and release." It is a combination of settable mechanical stops and an AFC circuit to get a "fast preset tuning".

Other brands with different Teledials:
One can find several models outside of Grunow, like
Airline Model 62-475 in black, 62-445 in white; 62-455 in brown, but also 62-355, 62-365, 62-375 from Montgomery Ward. Or the console Airline 448.

Truetone D-697 from Western Auto Supply could be something similar.

even in other countries, like in the UK:
Cossor model 397 and Cossor model 3952 (where a scan from "The Wireless & Electrical Trader" from May 28, 1938 shows a perspective sketch of the Teledial. Or Model Teledial 400 of Ultra Electric Ltd.

or in Canada:
Rogers-Majestic model 12-126 with chassis 7R1232 seems to be a Teledial model.

I still have to gather together the Canadian RCA models like the model 85-TA table model. Nobody created the model page yet.

Some other special tuning concepts of that time:
Philco has its "Magnetic Tuning" like for models 37-675X or model 37-10X .

And what system shows this Allied Knight 5B10507? An owner could tell us - there are several models.

Also Emerson offers later something similar, like this model AT170.






I will try to complete this list a bit - hopefully I will find time for that in the future. You are welcome to add more.

Ernst Erb, 27.Aug.13

Weitere Posts (3) zu diesem Thema.
