TC3 Ch= TE115

General Electric-Kirby Appliances Ltd.; Sydney

Data
Forum
Pictures
Collections

  • Year
  • 1964/1965
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 291994

 Technical Specifications

  • Number of Tubes
  • 14
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 180-275 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: TC3 Ch= TE115 - General Electric-Kirby
  • Shape
  • Console, Highboy (legs > 50 %).
  • Dimensions (WHD)
  • 30.5 x 28.375 x 14.25 inch / 775 x 721 x 362 mm
  • Notes

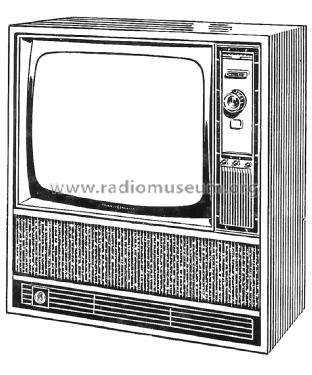

  • General Electric (Australia) Model TC3

    A 23" console TV receiver, cabinet finished in walnut, maple, or mahogany.

    Features Shelbond picture tube, which does away with flat or curved implosion screen, giving clearer picture free from parallel effects.

    Press-button on/off control, other front-mounted controls include volume, brightness, contrast, fine tuning. Rear-mounted preset controls: horizontal and vertical linearity. Front-mounted speaker, 8" twin cone. Anodised aluminium diecast mask and control panel. Fringe area chassis. (FROM MINGAY'S PRICE SERVICE)

    23" CRT type presently unknown, but most likely to be types 23CP4, 23HP4 or 23GSP4

  • Price in first year of sale
  • 208.95 AUS £
  • Literature/Schematics (1)
  • -- Original-techn. papers. (General Electric Service Information Chassis TE115.)
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
