• Country
• United States of America (USA)

• Manufacturer / Brand
• Day-Fan Electric Co.; Dayton, Ohio (Fan and Motor Company)

• Year
• 1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 42806

• • alternative name: Dayton Fan and Motor Co.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• UX201A UX201A UX201A UX201A or UX200A or UX240 UX201A UX201A UX112A

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 3 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Horn

• Material
• Wooden case

• from Radiomuseum.org

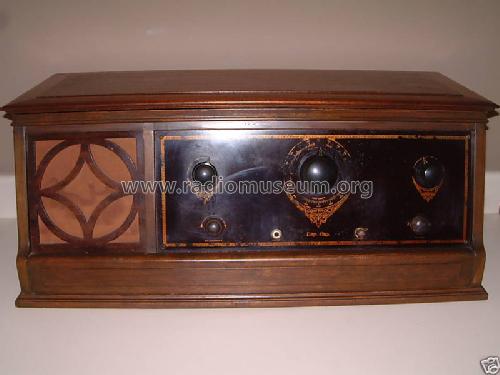

• Model: Daycraft 7 5050 - Day-Fan Electric Co.; Dayton,

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 30.5 x 12.5 x 14.5 inch / 775 x 318 x 368 mm

• Notes

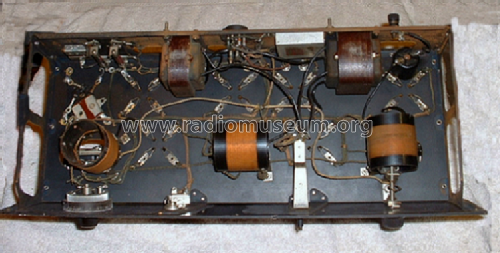

• Day-Fan Day-Craft 7, Type 5050 7-tube chassis with internal papier mache horn speaker. One dial (primary tuning control knob); Table base not included in price.
  Both Grinders Collectors Guide and Riders are in error when they allocate pre 1930 models to GM Radio.

  According to Tyne, page 317, the tube UX240 arrived February 1927.

• Price in first year of sale
• 150.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• Radio Manufacturers of the 1920s, Vol 1 (p.156)

• Literature/Schematics (3)
• Rider's Perpetual, Volume 1 = 1931/1934 (1919 to 1931) (General Motors Page 1-9)
