150 "The Queen Anne"
General Motors Radio Corp.
- Country
- United States of America (USA)
- Manufacturer / Brand
- General Motors Radio Corp.
- Year
- 1930/1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 42890
Picture courtesy of guest Len Bessey
Picture courtesy of guest Len Bessey
Picture courtesy of guest Len Bessey
Picture courtesy of guest Len Bessey
Picture courtesy of guest Len Bessey
Picture courtesy of guest Len Bessey
Picture courtesy of guest Len Bessey
Picture courtesy of guest Len Bessey

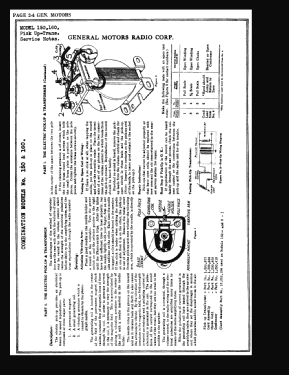

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s); Screengrid 1926-1935
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 150 "The Queen Anne" - General Motors Radio Corp.
- Shape
- Console, Highboy (legs > 50 %).
- Dimensions (WHD)
- 26 x 49 x 19 inch / 660 x 1245 x 483 mm
- Notes
-

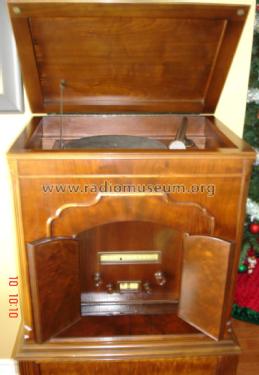

The General Motors model 150 "The Queen Anne" is an AC operated, 8 tube combination BC band receiver and phonograph. This radio has four tuned radio frequency circuits using three 224 screen grid tubes, a dectector stage using a 227 tube, a first audio stage using a 227 tube and the final audio stage consisting of two 245 tubes configured as a push-pull amplifier. The set also uses a 280 full wave rectifier tube.
1930 General Motors Catalog states: This period covers the furniture created in England between 1702 and 1714. Noted for the introduction of the cabriole leg. Curves are pronounced. Furniture of this period is accredited with being the first that combined confort with beauty. This model is a complete electrically-equipped radio-phonograph of extremely attractive lines and very desirable proportions.
There are four knobs: Upper left is the tone control, lower left is the power switch, upper right is the station selector and the lower right is the volume control. The small lower dial is the tone indicator.
The following models use the same chassis and schematic but have different cabinets:
Model Configuration 120 "The Hepplewhite" Radio 130 "The Sheraton" Radio 140 "The Late Italian" Radio 150 "The Queen Anne" Radio - Phonograph 160 "The Georgian" Radio - Phonograph
- Price in first year of sale
- 198.00 $ +
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Mentioned in
- - - Manufacturers Literature (General Motors Catalog Form R-3207 Adv 5/1930)
