TD1 Ch= TE108 serial no. below 20500
General Electric-Kirby Appliances Ltd.; Sydney
- Country
- Australia
- Manufacturer / Brand
- General Electric-Kirby Appliances Ltd.; Sydney
- Year
- 1961/1962
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 236140

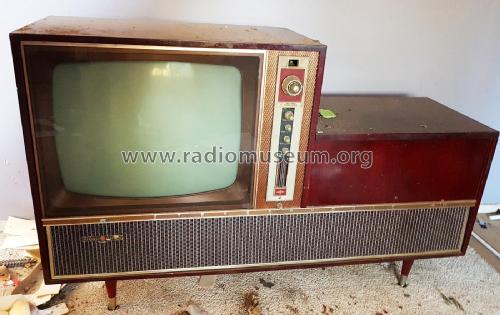

Ebay au seller stavs64. Item #112521278371
- Number of Tubes
- 18
- Valves / Tubes
- 6ES8 6BL8 6EH7 6EJ7 6EJ7 6DX8 6BL8 12AX7 6GW8 6GW8 6BM8 6CG7 6CM5 6AL3 1S2 23MP4 6AN7 6N8
- Number of Transistors
- Main principle
- Superhet with RF-stage; 3 AF stage(s)
- Wave bands
- Wave Bands given in the notes.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 180-210; 220-250; 260-275 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: TD1 Ch= TE108 [serial no. below 20500] - General Electric-Kirby
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 51.25 x 31.75 x 14.75 inch / 1302 x 806 x 375 mm
- Notes
-
This model is similar to Kirby-Crosley Concerto VB24.
This is a combined 23 inch television, stereo record player and MW tuner. The TV tunes the 13 standard Australian VHF channels.
Cabinet finishes available in Italian Walnut, Butt Maple & Rose Mahogany.
See also fringe version Model TD1.
- Price in first year of sale
- 271.95 AUS £
- Literature/Schematics (1)
- -- Original-techn. papers. (General Electric Service Data, 24/10/61.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962 & 1967, Page G3.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
