- Country
- Spain
- Manufacturer / Brand
- General Eléctrica Española (GEE); Madrid
- Year
- 1973 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 317343

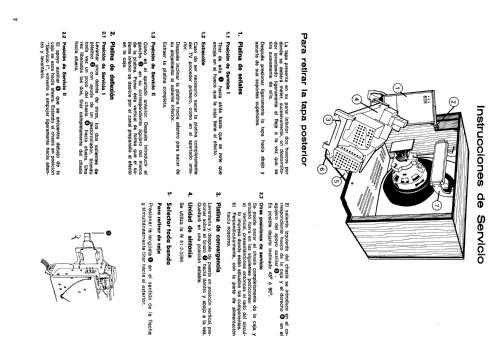

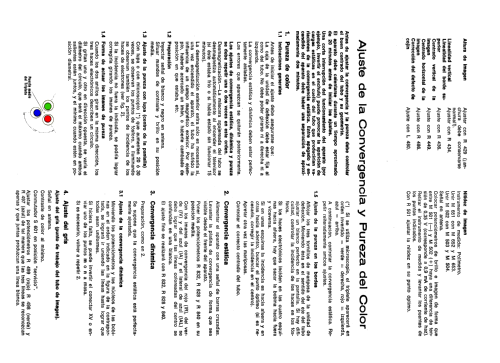

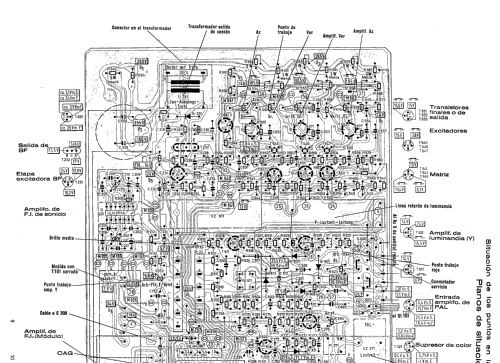

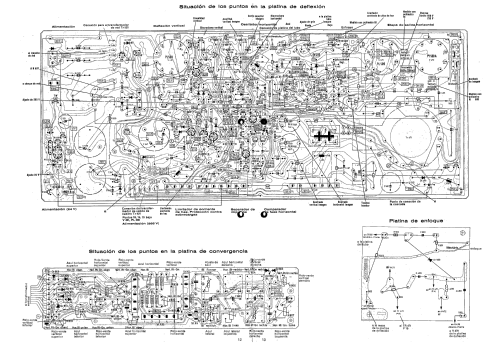

Imagen del manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- 46
- Semiconductors
- ULN2111A
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: 26C1 - General Eléctrica Española GEE
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 740 x 540 x 560 mm / 29.1 x 21.3 x 22 inch
- Notes
-
General Electrica Española (GEE) Televisor Color 26C1
TV Color 26" con sintonizador VHF/UHF tipo N-61-2-3398 y cinco presintonías.
Altavoz elíptico de 10 x 18 cm.

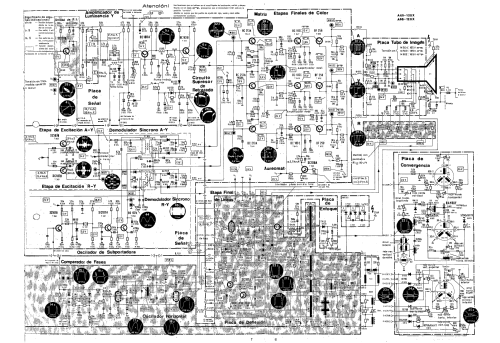

El esquema parece el mismo del Telefunken PALcolor 740T Ch=709
- Net weight (2.2 lb = 1 kg)
- 47 kg / 103 lb 8.4 oz (103.524 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
