4Z2 con EY86

• Country
• Spain

• Manufacturer / Brand
• General Eléctrica Española (GEE); Madrid

• Year
• 1963

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 239433

• Picture

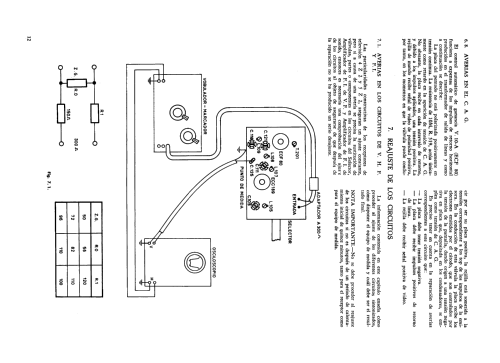

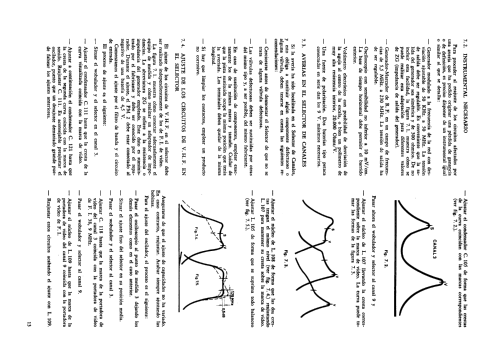

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• ECC189 ECF82 ECF80 EBF89 EL84 EF183 EF80 EF80 EL183 ECF80 EL86 ECH84 EB91 ECC82 EL300 EY88 DY87 AW47-91

• Number of Transistors

• Semiconductors
• 1N63 1N64 40J2

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 127; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 4Z2 [con EY86] - General Eléctrica Española GEE

• Shape
• Tablemodel, low profile (big size).

• Notes

• General Eléctrica Española, GEE, 4Z2 (con EY86)

  TV B/N 19" con selector rotativo de VHF.

  Preparado para la colocación de sintonizador de UHF.

  Véase también 4Z2 con DY87

• Price in first year of sale
• 17,021.25 ESP
