4Z3 Anexo 1
General Eléctrica Española (GEE); Madrid
- Country
- Spain
- Manufacturer / Brand
- General Eléctrica Española (GEE); Madrid
- Year
- 1966 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 301708
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- ECC189 ECF801 EF183 EF183 EF184 EL183 EF184 ECH84 EF184 EB91 ECC82 EL502 EY88 EY86 ECL805 19BEP4
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 127; 150; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 4Z3 [Anexo 1] - General Eléctrica Española GEE
- Shape
- Tablemodel, low profile (big size).
- Notes
-
TV B/N con selector rotativo de VHF, sintonizador transistorizado de UHF y TRC de 19"
Veanse variantes:
4Z3 (primera serie) con selector rotativo de VHF y sintonizador a válvulas para UHF
4Z3 Anexo 2 con selector de VHF y sintonizador transistorizado de UHF diferentes.

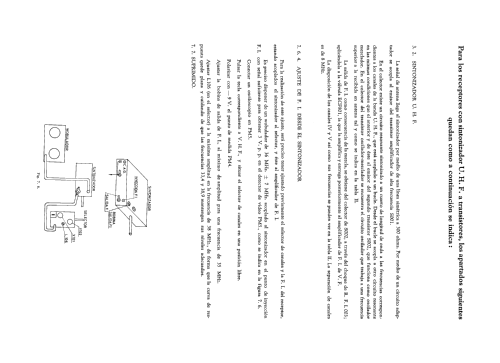

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
