• Country
• Spain

• Manufacturer / Brand
• General Eléctrica Española (GEE); Madrid

• Year
• 1968 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 313028

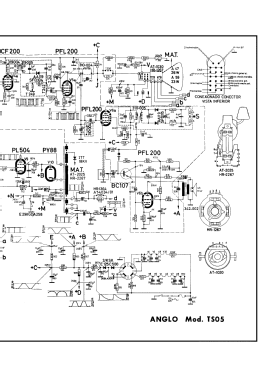

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 5A9 - General Eléctrica Española GEE

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 680 x 460 x 350 mm / 26.8 x 18.1 x 13.8 inch

• Notes

• General Eléctrica Española GEE televisor modelo 5A9

  TV de 20" en B/N con VHF/UHF

• Net weight (2.2 lb = 1 kg)
• 27 kg / 59 lb 7.5 oz (59.471 lb)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
