• Country
• Spain

• Manufacturer / Brand
• General Eléctrica Española (GEE); Madrid

• Year
• 1966 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 301706

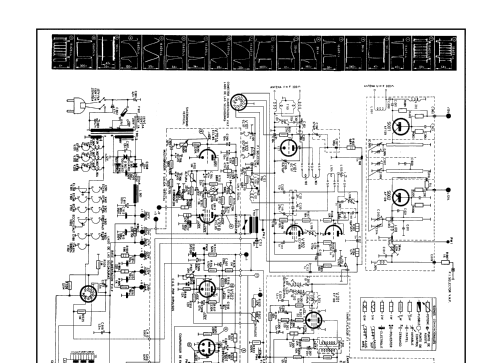

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• EC97 ECF805 EF183 EF183 EF184 EL183 EF184 ECH84 EF184 EB91 ECC82 EL502 EY88 EY86 ECL805 23AXP4

• Number of Transistors
• 2

• Semiconductors
• AF139 AF139 SFD104 SFD108 1N542 4JA10D

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 127; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: 5Z3 [Anexo 2] - General Eléctrica Española GEE

• Shape
• Tablemodel, low profile (big size).

• Notes

• TV B/N con selector rotativo de VHF, sintonizador transistorizado de UHF y TRC de 23"
  Altavoz elíptico de 5" x 8"

  Veanse variantes:

  5Z3  (primera serie) con selector rotativo de VHF y sintonizador a válvulas para UHF
  5Z3 Anexo 1 con selector de VHF y sintonizador transistorizado de UHF diferentes.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
