• Year
  • 1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 290415

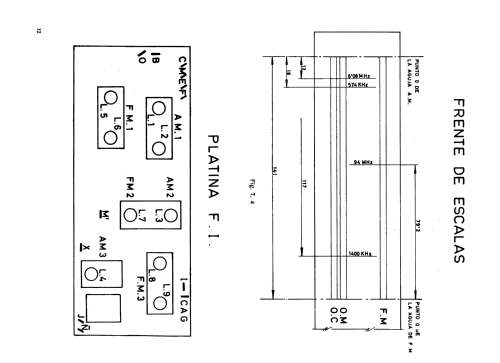

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 480/10700 kHz; 3 AF stage(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Dry Batteries / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
  • Power out
  • 0.4 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 9V3 - General Eléctrica Española GEE
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 270 x 160 x 60 mm / 10.6 x 6.3 x 2.4 inch
  • Notes
  • OM: 520 - 1.620 kHz.
    OC: 5,85 - 12,5 MHz.
    FM: 87 - 104 MHz.

  • Net weight (2.2 lb = 1 kg)
  • 1.250 kg / 2 lb 12.1 oz (2.753 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
