- Country
- Spain
- Manufacturer / Brand
- General Eléctrica Española (GEE); Madrid
- Year
- 1968 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 259201

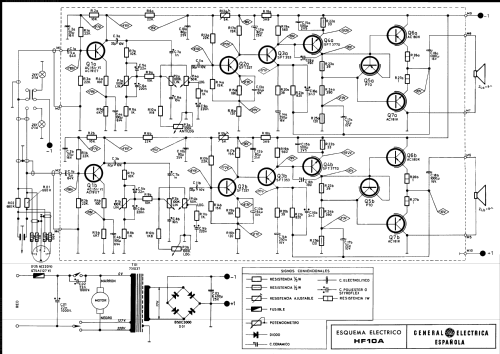

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 14
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 127; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 4 W (undistorted)
- Material
- Various materials
- from Radiomuseum.org
- Model: HF-10-A - General Eléctrica Española GEE
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 460 x 280 x 170 mm / 18.1 x 11 x 6.7 inch
- Notes
-
Tocadiscos estéreo automático. Lleva dos altavoces elípticos de 6 x 10".

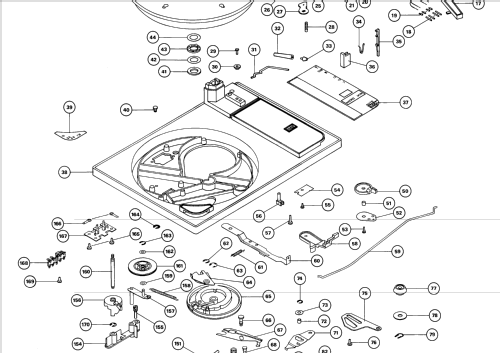

Utiliza plato BSR modelo C124
Listados los semiconductores de un canal.
- Net weight (2.2 lb = 1 kg)
- 9.2 kg / 20 lb 4.2 oz (20.264 lb)
- Literature/Schematics (2)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
