• Country
• Spain

• Manufacturer / Brand
• General Eléctrica Española (GEE); Madrid

• Year
• 1967

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 290206

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AC125 AC125 AC125 AC125 AC125 AC125 AC128 AC128 AC128 AC128 AD132

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 160; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 6 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: MS-7 - General Eléctrica Española GEE

• Shape
• Tablemodel, low profile (big size).

• Notes

•  Tocadiscos estéreo de 3 W. por canal con plato manual de 4 velocidades.

  Lleva incorporados como tapa dos bafles con altavoces de 17 cm.

• Literature/Schematics (1)

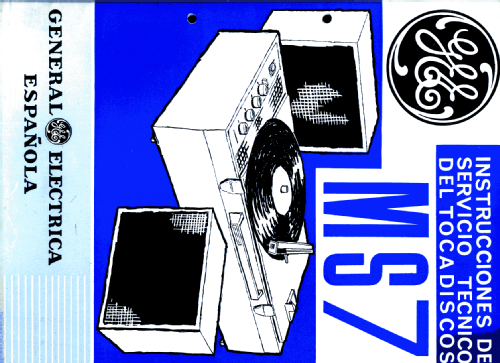

• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
